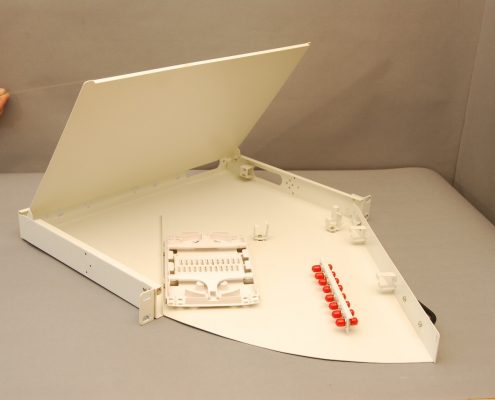

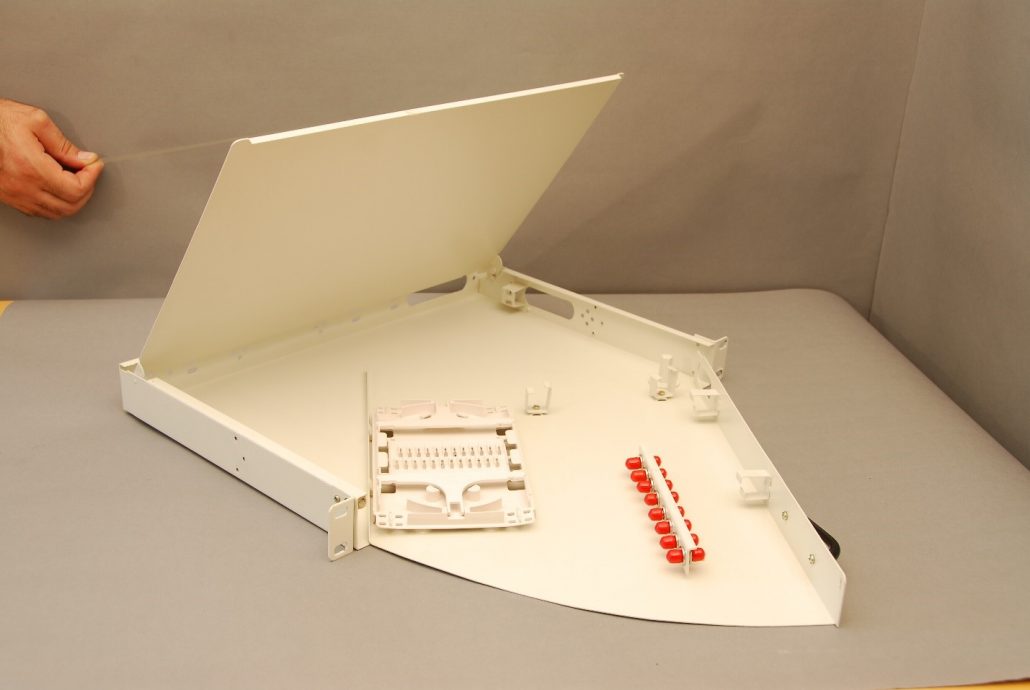

Optic Cable Distribution Frame (ODF-OCDF) / 19ً Rack Mount
Application and Properties:
ODF/OCDF Rack is used to configure fiber to fiber or fiber to pigtail and also configure of pigtail to patch cord outgoing from line terminal. This rack is made up of two main section: Body and Blade.
- Facilitates the management of optical fibers
- Easy installation, repair & maintenance
- High resistance against corrosion
- With all-round cover for mechanical protection of fiber optics.
- with flame Retarded plastic components
- OCDF part contain: cassette and fiber keeper made up of flame retarded polycarbonate and metal body is made of Aluminum (group of 1000).
- ODF part contain: connector keeper blade made up of St37 galvanized plate and connector keepers are made of flame retarded ABS.
- Controlled according to UL94-V0, ASTM B117, ASTM D3359, ASTM D3935 Standards.
Technical Specification
| material | Body | Galvanized Steel plate St37 |
| Plate | ||
| Blade | ||
| Cable support | ||
| transmission cable boxes | ||
| Rake | ||
| C- shaped base | ||
| Connector keeper | Flame retarded ABS | |
| Door | Steel plate with electrostatic color Ral 7035 | |
| Cassette and Fiber keeper | Flame Retarded Polycarbonate | |
| base | Aluminum | |
| angle | ||
| Dimension | Height (mm) | 1 U |
| Width(mm) | 19 inch | |
| Depth (mm) | ||
| OCDF Capacity | Number of Section | 1 |
| Number of Cassette in each section | 1 | |
| Number of Fiber keeper in each Cassette | 1/2 | |
| Fiber keeper capacity | 12/24 | |
| Total capacity | 12/24/48 |
